Outdoor LED Screen

Indoor LED Display

Rental LED Screen

Solar car screen

LED advertising machine

Custom LED Screen

LED Display Panel

Energy-Saving Screens

Light bar screen

Energy-Saving Screens-D Series

Energy saving50%
High Brightness
Lightweight
High Stability

50% energy saving = value creation

Brightness: 8000nits,MAX Power: only 350W/m² Patented customized energy-saving IC+ patented DIP 3 IN 1 full color high brightness lamp , saving more power but still high brightness , very suitable for outside.

High heat dissipation

Adopts die-cast aluminum Cabinet, Good heat dissipation.

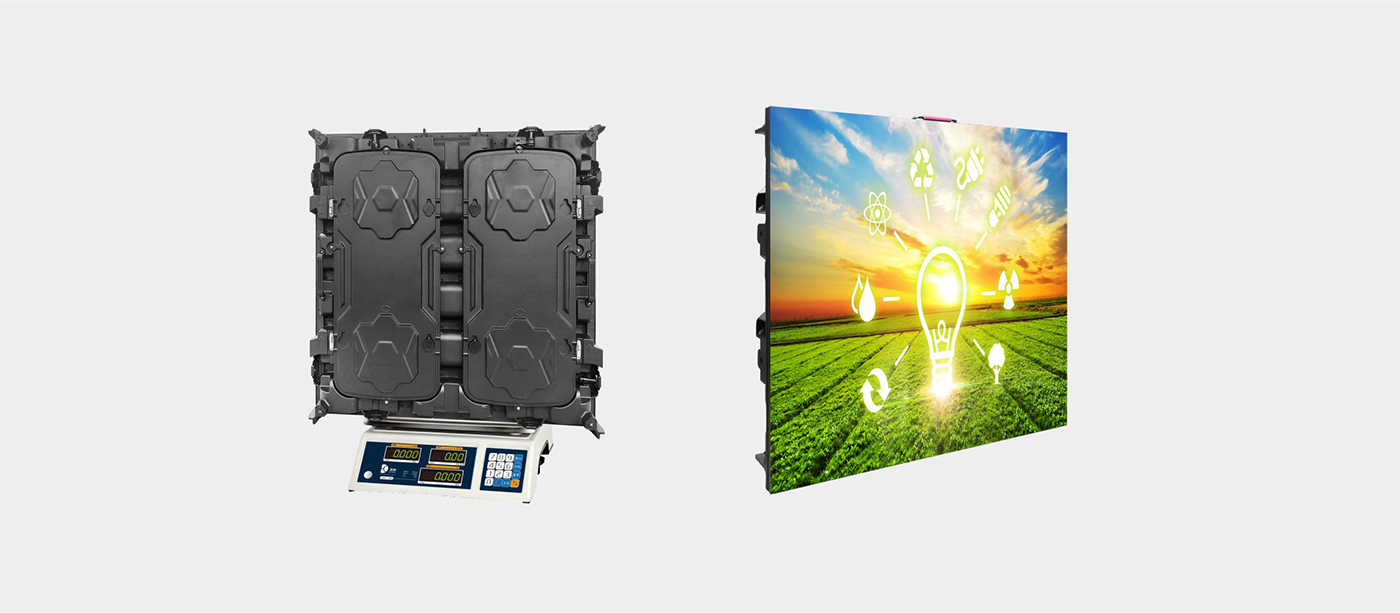

Light weight

Light weight and Excellent Flatness Standard Die-casting Aluminum Cabinet.

Shining and sparkling all day and night

Support automatic adjustment, high water-proof and dust-proof, the self-encapsulated 3 in 1 full color lamp makes good color mixing and increases the restoration degree by 20%, which can also restore image completely at outside.

Applications

D series is designed for Sports venue, commercial square, railway station square, airport, pedestrian street, station, subway, leisure dock, exhibition hall, etc.

High protection

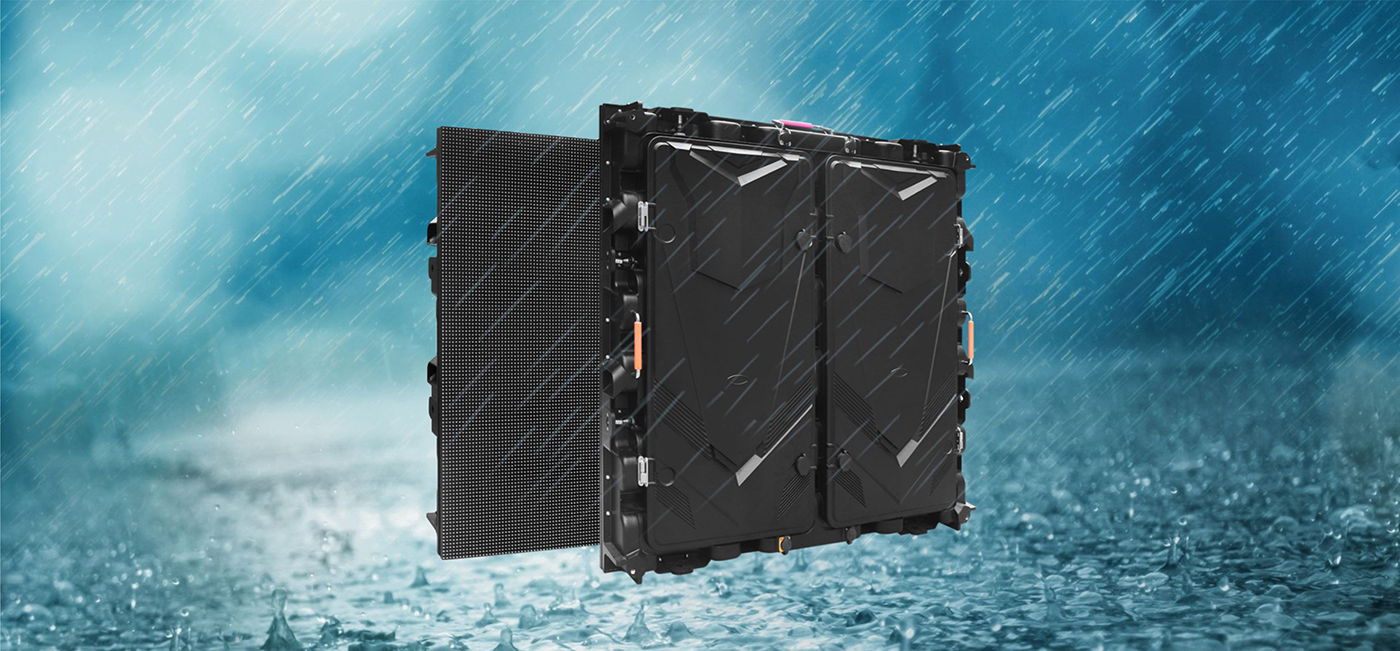

Comprehensive water-proof design, easy to deal with all kinds of harsh environment.

More models for your more needs, please choose your favorite one...

Product Name	D6.6	D8	D10
Pixel Configuration	DIP570	DIP570	DIP570
Pixel Pitch(mm)	6.67	8	10
Pixel matrix per panel	144x144	120x120	96x96
Cabinet Dimensions(mm)	960x960x113	960x960x113	960x960x113
Transparency Rate	/	/	/
Refresh Rate(Hz)	3840	3840	3840
Drive Mode	1/6	1/4	1/4
Brightness (nits)	8000	8000	8000
Horizontal / Vertical Viewing Angle	110/55	110/55	110/55
AC Input Power Maximum/Average	350/117	350/117	350/117

Common Problem

What is the Excellent E Series E5?

The Excellent E Series E5 is a LED display screen designed for outdoor use. It is a high-quality, energy-efficient solution for visual displays in various outdoor environments such as stadiums, commercial areas, events, and more. The E5 is part of the Excellent E Series line of products known for their advanced features and energy-saving capabilities.

How does the Excellent E Series E5 save energy?

The Excellent E Series E5 saves energy through its use of patented customized energy-saving IC and DIP 3 in 1 full-color high-brightness lamp. This technology allows the E5 to use up to 50% less energy than other LED display screens without sacrificing brightness or image quality. Additionally, the E5's automatic adjustment feature helps to conserve energy further by optimizing visual performance based on changes in the surrounding environment.

What is the maximum brightness and power consumption of the Excellent E Series E5?

The Excellent E Series E5 has a maximum brightness of 8000nits, making it suitable for bright outdoor environments. It also has a maximum power consumption of 350W/m², significantly lower than many other LED display screens in its class.

What is the color quality and restoration capability of the Excellent E Series E5?

The Excellent E Series E5 uses self-encapsulated 3 in 1 full-color lamp technology, which allows it to achieve excellent color mixing and increase the restoration degree by 20%. This means the E5 can restore images with high accuracy and produce high-quality visuals with good color reproduction. The E5's good color mixing capability also helps prevent color banding and other visual artifacts that can occur with different LED display screens.

What are the key features of the Excellent E Series E5?

The key features of the Excellent E Series E5 include:

●High brightness

●Energy-saving capabilities

●Good color mixing

●Automatic adjustment

●Water-proof and dust-proof design

●Excellent visual performance both during the day and at night
