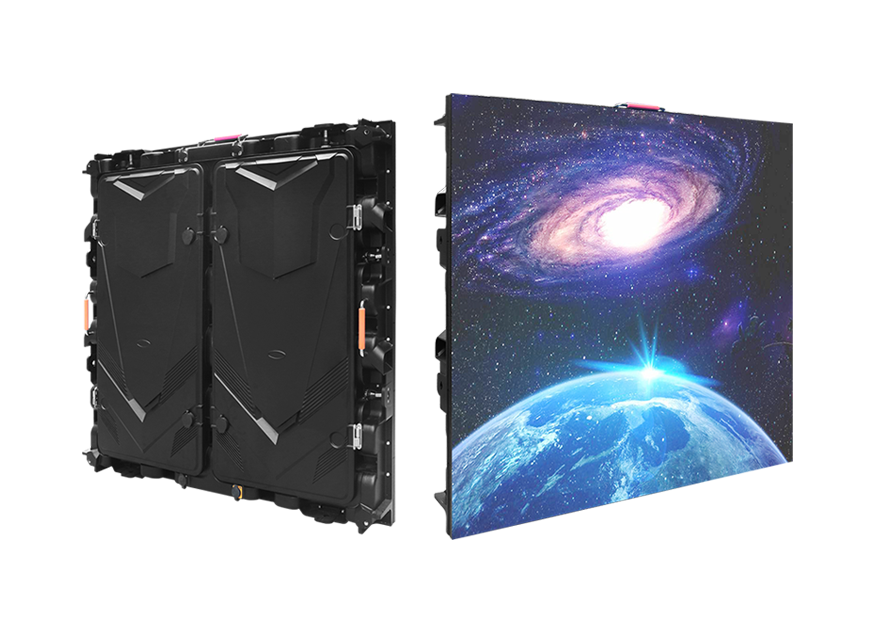

Outdoor fixed Screen-T6.6

Energy saving
8000nits
High Stability

High Stability 、 High Brightness 、 Energy Saving

Maintaining stability is of top priority

High Stability and reliability, excellently response to all kinds of harsh environment

Applied over 10 years in the market , High Stability and reliability with various testing such as waterproof testing , salt spray testing , aging testing and seismic testing and etc.

Various pixel pitch for different application

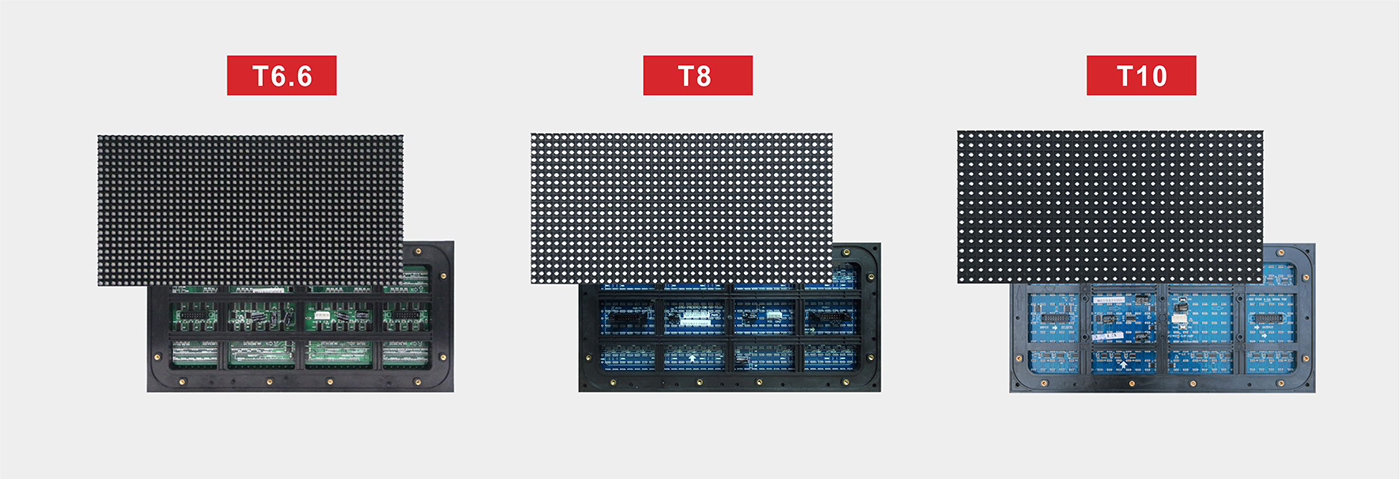

P6.6 P8 P10,the 3 different pixel pitch to meet the needs of different viewing distances

Applications

T series apply to Sports venue, commercial square, railway station square, airport, pedestrian street, station, subway, leisure dock, exhibition hall, etc

High protection

Comprehensive waterproof design, easy to deal with all kinds of harsh environment.

More models for your more needs, please choose your favorite one...

Product Name	T6.6	T8	T10
Pixel Configuration	DIP570	DIP570	DIP570
Pixel Pitch(mm)	6.6	8	10
Pixel matrix per panel	144x144	120x120	96x96
Cabinet Dimensions(mm)	960x960x113	960x960x113	960x960x113
Transparency Rate	/	/	/
Refresh Rate(Hz)	3840	3840	3840
Drive Mode	1/6	1/5	1/4
Brightness (nits)	8000/6000	8000/6000	8000/6000
Horizontal / Vertical Viewing Angle	110/55	110/55	110/55
AC Input Power Maximum/Average	550/185 / 440/150	550/185 / 440/150	550/185 / 440/150

Common Problem

What is the Taurus T Series T6.6 outdoor fixed screen?

The Taurus T Series T6.6 outdoor fixed screen is a type of LED display panel designed for outdoor use. It is a high-resolution video screen that is used to display dynamic visual content such as text, images, videos, and animations. The T6.6 model has a pixel pitch of 6.6mm, which means that the distance between each LED pixel is 6.6mm. The screen is made up of modules that can be assembled to create larger screens of varying sizes. The T Series T6.6 outdoor fixed screen is known for its high brightness, contrast, and colour saturation, which makes it suitable for use in a wide range of outdoor applications.

What is the pixel pitch of a Taurus T Series T6.6 outdoor fixed screen?

The pixel pitch of a Taurus T Series T6.6 outdoor fixed screen is 6.6mm, which means that the distance between each LED pixel is 6.6mm.

What is the maximum brightness of a Taurus T Series T6.6 outdoor fixed screen?

The maximum brightness of a Taurus T Series T6.6 outdoor fixed screen can vary depending on the specific model and configuration, but it can range from 5,000 to 8,000 nits, which is much brighter than a typical indoor LED display panel.

What is the viewing angle of a Taurus T Series T6.6 outdoor fixed screen?

The viewing angle of a Taurus T Series T6.6 outdoor fixed screen is typically around 140 degrees in both the horizontal and vertical directions. This means that viewers can see the screen clearly from a wide range of angles.

Is a Taurus T Series T6.6 outdoor fixed screen waterproof?

Yes, a Taurus T Series T6.6 outdoor fixed screen is designed to be waterproof and can withstand exposure to rain, snow, and other harsh weather conditions. It has an IP65 rating, which means that it is completely dust-tight and can also withstand low-pressure water jets from any direction.
