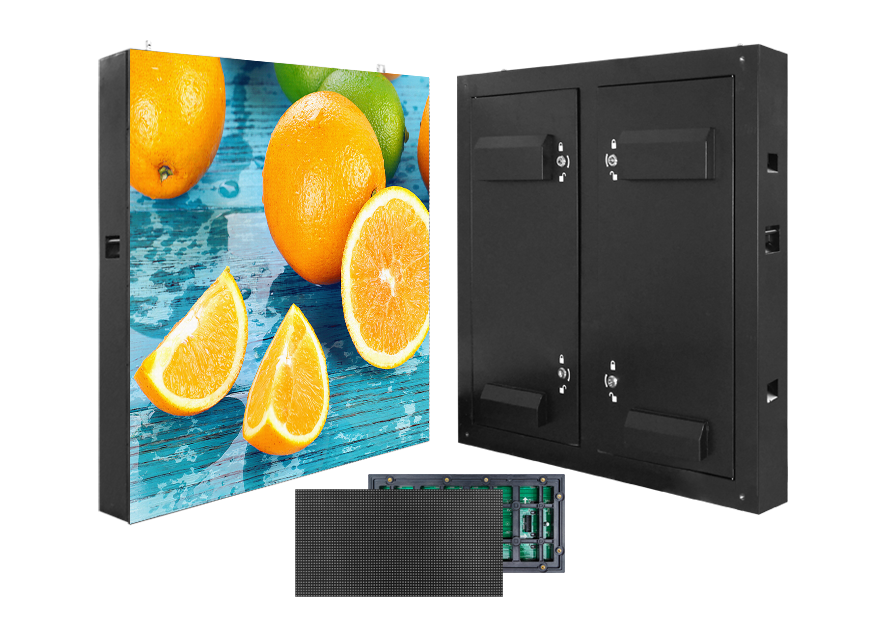

Outdoor fixed Screen-T4

  • High Definition

  • 5000nits

  • High Stability


High Stability 、 High Definition 、 High Refresh

Maintaining stability is of top priority
High Stability and reliability, excellently response to all kinds of harsh environment
Applied over 10 years in the market , High Stability and reliability with various testing such as waterproof testing , salt spray testing , aging testing and seismic testing and etc.
T4 Product Specifications
Various pixel pitch for different application

T2.5 T3 T3.076 T4 T5 T6,the 6 different pixel pitch to meet the needs of different viewing distances

The picture is clear and delicate

Adopting outdoor SMD lamp beads, the picture is clear and delicate

Applications
T series apply to Sports venue, commercial square, railway station square, airport, pedestrian street, station, subway, leisure dock, exhibition hall, etc
High protection
Comprehensive waterproof design, easy to deal with all kinds of harsh environment.

More models for your more needs, please choose your favorite one...

Product Name

T2.5

T3

T3.076

T4

T5

T6

Pixel Configuration

SMD1415

SMD1415

SMD1415

SMD1921

SMD1921

SMD2727

Pixel Pitch(mm)

2.5

3

3.076

4

5

6

Pixel matrix per panel

384x384

320x320

312x312

240x240

192x192

160x160

Cabinet Dimensions(mm)

960x960x147

960x960x147

960x960x147

960x960x147

960x960x147

960x960x147

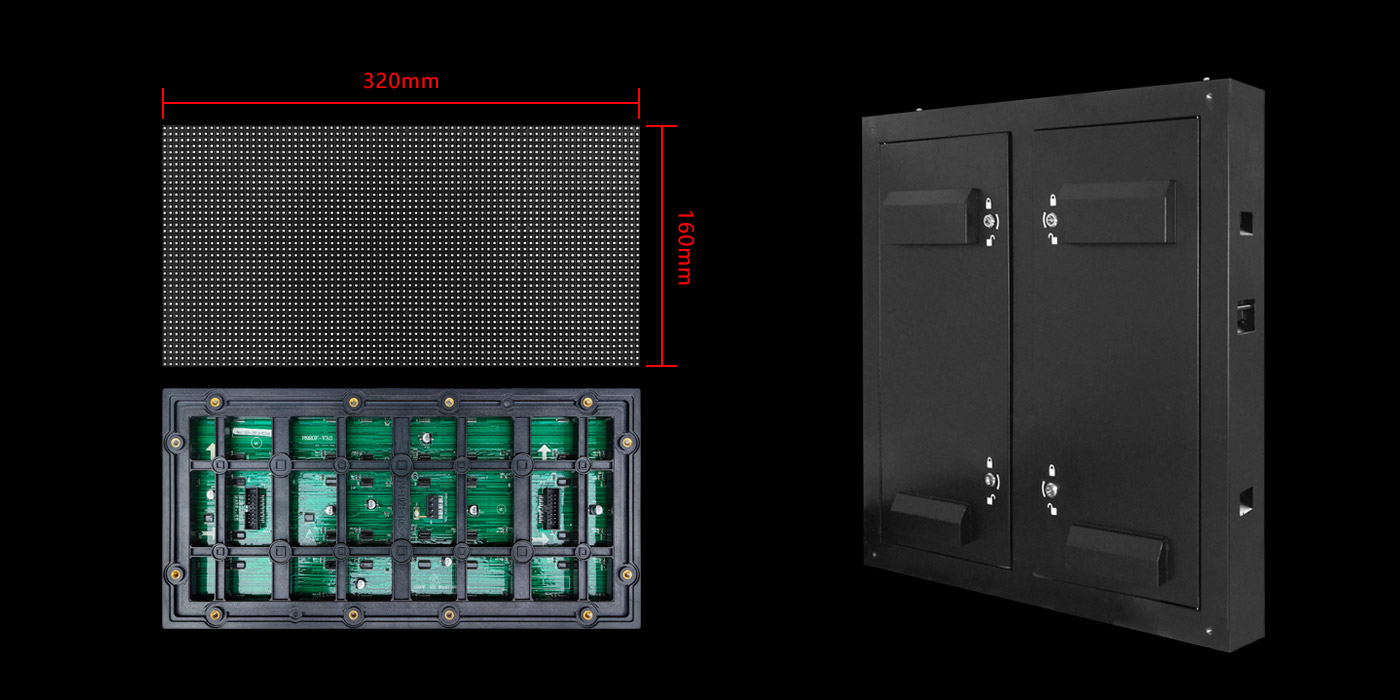

Module Dimensions(mm)

320x160

192x192

320x160

320x160

320x160

192x192

Refresh Rate(Hz)

3840

3840

3840

3840

3840

3840

Drive Mode

1/16

1/16

1/13

1/10

1/8

1/8

Brightness (nits)

5000

5000

5000

5000

5000

5000

Horizontal / Vertical Viewing Angle

170/120

170/120

170/120

170/120

170/120

170/120

AC Input Power Maximum/Average

<1000/240

<800/250

<800/260

<1000/300

800/250

<1000/350

Common Problem

What is the pixel pitch of the Taurus T Series T4 outdoor fixed screen?

The Taurus T Series T4 outdoor fixed screen has a pixel pitch of 4mm, which means that the distance between each LED is 4mm.



What is the resolution of the Taurus T Series T4 outdoor fixed screen?

The resolution of the Taurus T Series T4 outdoor fixed screen depends on the size of the screen. However, as an example, a screen with dimensions of 1920mm x 1080mm would have a resolution of 480 x 270 pixels.



Is the Taurus T Series T4 outdoor fixed screen suitable for use in harsh weather conditions?

Yes, the Taurus T Series T4 outdoor fixed screen is designed to withstand harsh weather conditions, making it suitable for use in outdoor environments.



What are some common applications for the Taurus T Series T4 outdoor fixed screen?

The Taurus T Series T4 outdoor fixed screen is commonly used for outdoor advertising, sports events, concerts, and other large-scale outdoor events. It can also be used for public displays, such as information displays or digital signage.



Can the Taurus T Series T4 outdoor fixed screen be customized to fit specific installation requirements?

Yes, the Taurus T Series T4 outdoor fixed screen can be customized to fit specific installation requirements, such as screen size, aspect ratio, and mounting options.



What is the lifespan of the Taurus T Series T4 outdoor fixed screen?

The lifespan of the Taurus T Series T4 outdoor fixed screen depends on various factors, such as usage and maintenance. However, with proper use and maintenance, it can last for many years.
