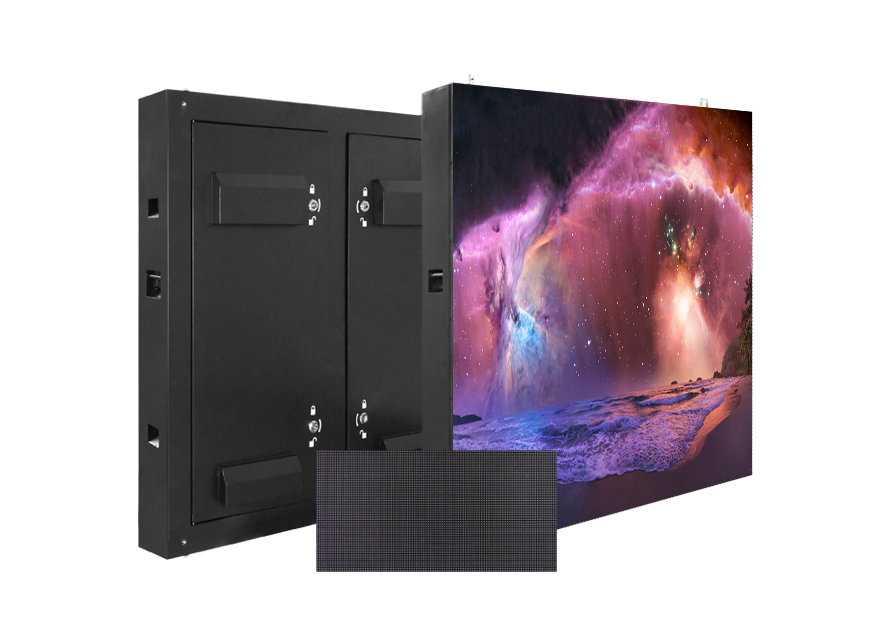

Outdoor fixed Screen-T3.076

High Definition
5000nits
High Stability

High Stability 、 High Definition 、 High Refresh

Maintaining stability is of top priority

High Stability and reliability, excellently response to all kinds of harsh environment

Applied over 10 years in the market , High Stability and reliability with various testing such as waterproof testing , salt spray testing , aging testing and seismic testing and etc.

T3.076 Product Specifications

Various pixel pitch for different application

T2.5 T3 T3.076 T4 T5 T6,the 6 different pixel pitch to meet the needs of different viewing distances

The picture is clear and delicate

Adopting outdoor SMD lamp beads, the picture is clear and delicate

Applications

T series apply to Sports venue, commercial square, railway station square, airport, pedestrian street, station, subway, leisure dock, exhibition hall, etc

High protection

Comprehensive waterproof design, easy to deal with all kinds of harsh environment.

More models for your more needs, please choose your favorite one...

Product Name	T2.5	T3	T3.076	T4	T5	T6
Pixel Configuration	SMD1415	SMD1415	SMD1415	SMD1921	SMD1921	SMD2727
Pixel Pitch(mm)	2.5	3	3.076	4	5	6
Pixel matrix per panel	384x384	320x320	312x312	240x240	192x192	160x160
Cabinet Dimensions(mm)	960x960x147	960x960x147	960x960x147	960x960x147	960x960x147	960x960x147

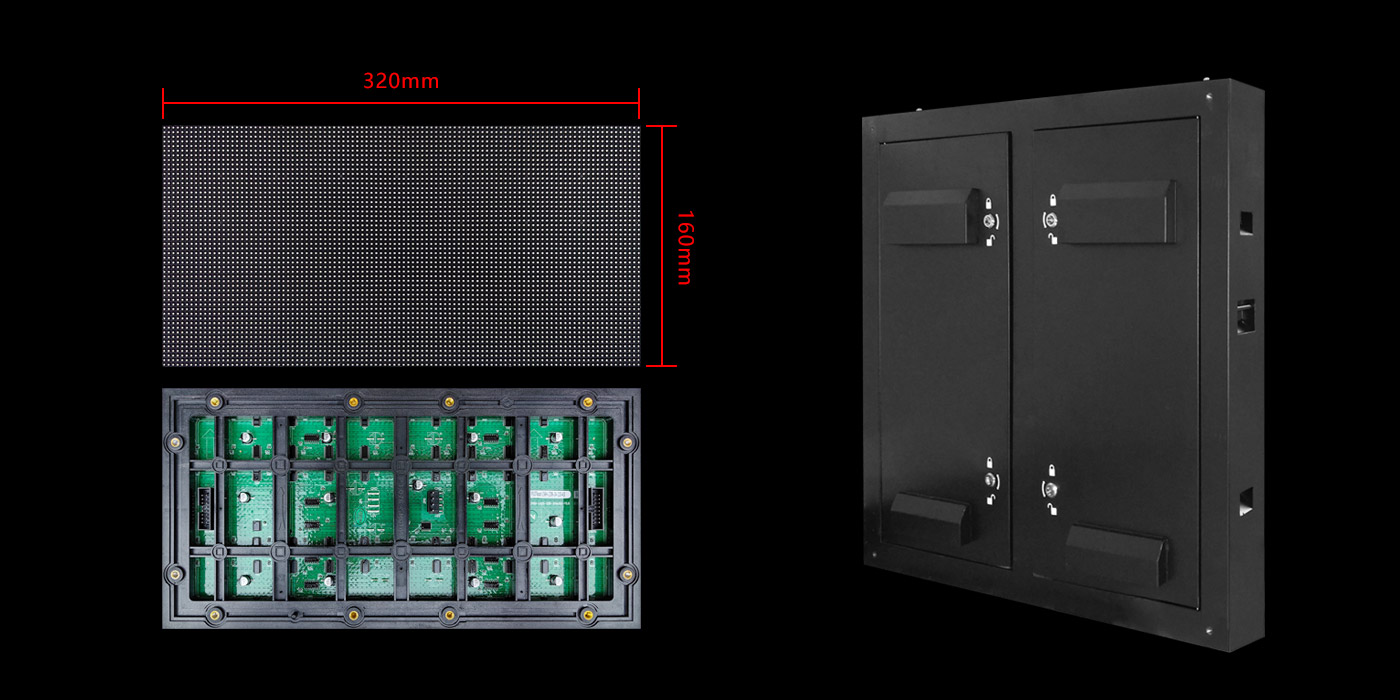

Module Dimensions(mm)	320x160	192x192	320x160	320x160	320x160	192x192
Refresh Rate(Hz)	3840	3840	3840	3840	3840	3840
Drive Mode	1/16	1/16	1/13	1/10	1/8	1/8
Brightness (nits)	5000	5000	5000	5000	5000	5000
Horizontal / Vertical Viewing Angle	170/120	170/120	170/120	170/120	170/120	170/120
AC Input Power Maximum/Average	＜1000/240	＜800/250	＜800/260	＜1000/300	800/250	＜1000/350

Common Problem

What is an outdoor fixed screen (SMD)?

An outdoor fixed screen (SMD) is a type of LED display screen that is designed for fixed installation in outdoor settings. It uses Surface-Mounted Device (SMD) technology, which allows for higher resolution and brighter images compared to traditional LED displays.

What is the pixel pitch of the Taurus T Series T3.076 outdoor fixed screen?

The pixel pitch of the Taurus T Series T3.076 outdoor fixed screen is 3.076mm, which means that the distance between each LED is 3.076mm.

What is the resolution of the Taurus T Series T3.076 outdoor fixed screen?

The resolution of the Taurus T Series T3.076 outdoor fixed screen depends on the size of the screen. However, as an example, a screen with dimensions of 1920mm x 1080mm would have a resolution of 624 x 364 pixels.

Is the Taurus T Series T3.076 outdoor fixed screen suitable for use in harsh weather conditions?

Yes, the Taurus T Series T3.076 outdoor fixed screen is designed to withstand harsh weather conditions, making it suitable for use in outdoor environments.

What are some common applications for the Taurus T Series T3.076 outdoor fixed screen?

The Taurus T Series T3.076 outdoor fixed screen is commonly used for outdoor advertising, sports events, concerts, and other large-scale outdoor events. It can also be used for public displays, such as information displays or digital signage.

Can the Taurus T Series T3.076 outdoor fixed screen be customized to fit specific installation requirements?

Yes, the Taurus T Series T3.076 outdoor fixed screen can be customized to fit specific installation requirements, such as screen size, aspect ratio, and mounting options.
